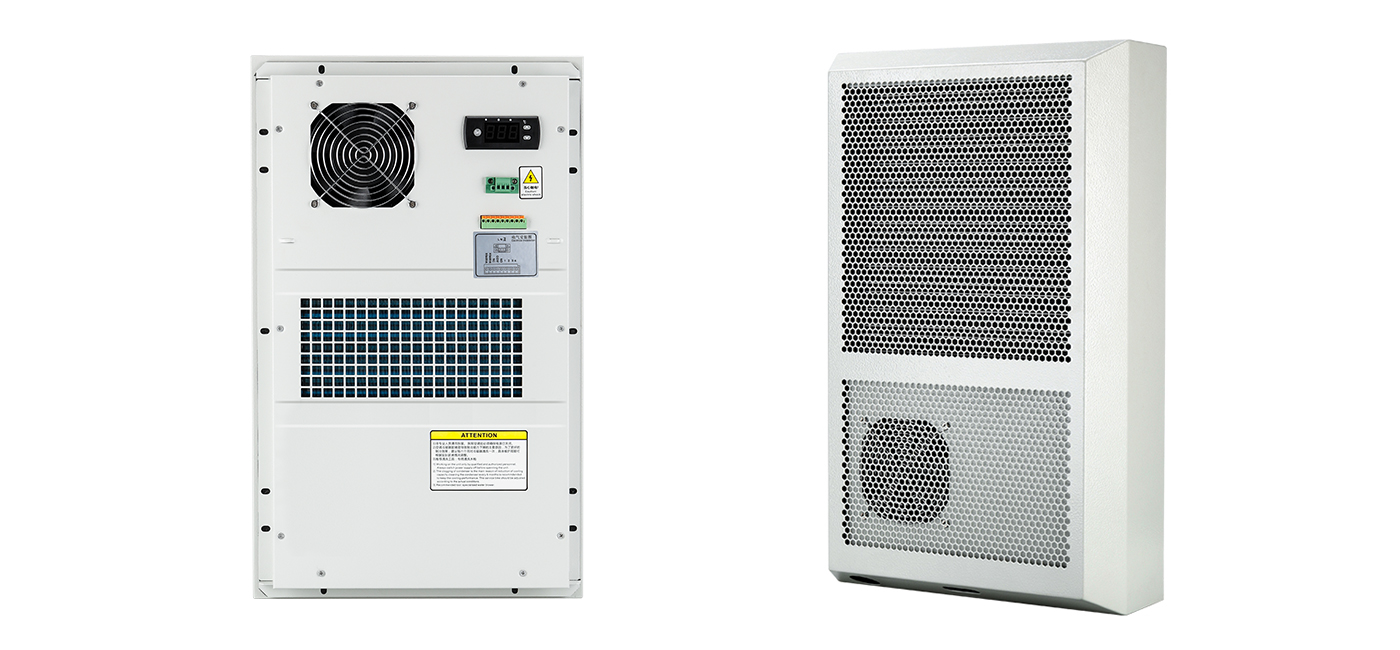

Product Introduction:
Outdoor cabinet air conditioning is cooled by a compressor, using internal and external circulation air ducts to remove heat from the cabinet and deliver cold air to the cabinet, thereby ensuring the normal operation of components inside the cabinet. At present, the preferred model for outdoor base stations in the communication and power industry.
Application areas:
Communication, industry, power, broadcasting, finance, education and other industries.
Product features:
1. Adopting high-efficiency energy-saving fans and compressors to extend the service life of air conditioners and reduce power consumption;
2. Compact all-in-one machine with flange design, plug and play, easy to install;
3. Closed refrigeration cycle to protect equipment from harsh environmental conditions
4. Multi functional alarm output, real-time system monitoring, convenient and fast human-machine interface, making operation simpler;
5. High temperature and high humidity alarm output to ensure the normal operation of the equipment;
6. Rain proof, dust-proof, lightning proof, insect proof, anti-theft, radiation proof, high reliability;
7. Self starting upon incoming call, high and low voltage protection, automatic hydrogen discharge, optional heating function;
Technical parameters:
*Input voltage: AC220V/50Hz
*Communication interface: R485 (standard)
*Refrigerant: R134a
*Alarm output: dry contact (standard)
*Operating temperature range:- 5℃~55℃
*Standard single cooling, optional cooling and heating
Installation method:
Installation positionEmbedded in door fittings.
① Select a suitable side on all sides of the electrical cabinet;
② According to the "opening size diagram", open the corresponding air inlet and outlet, wiring port, and installation hole on the side;
③ The air conditioner should be perpendicular to the ground and not tilted to avoid affecting the normal operation of the compressor and the discharge of condensed water;
④ Once the air conditioner is fixed and connected to the power supply, it can be put into use;
