Product Introduction:

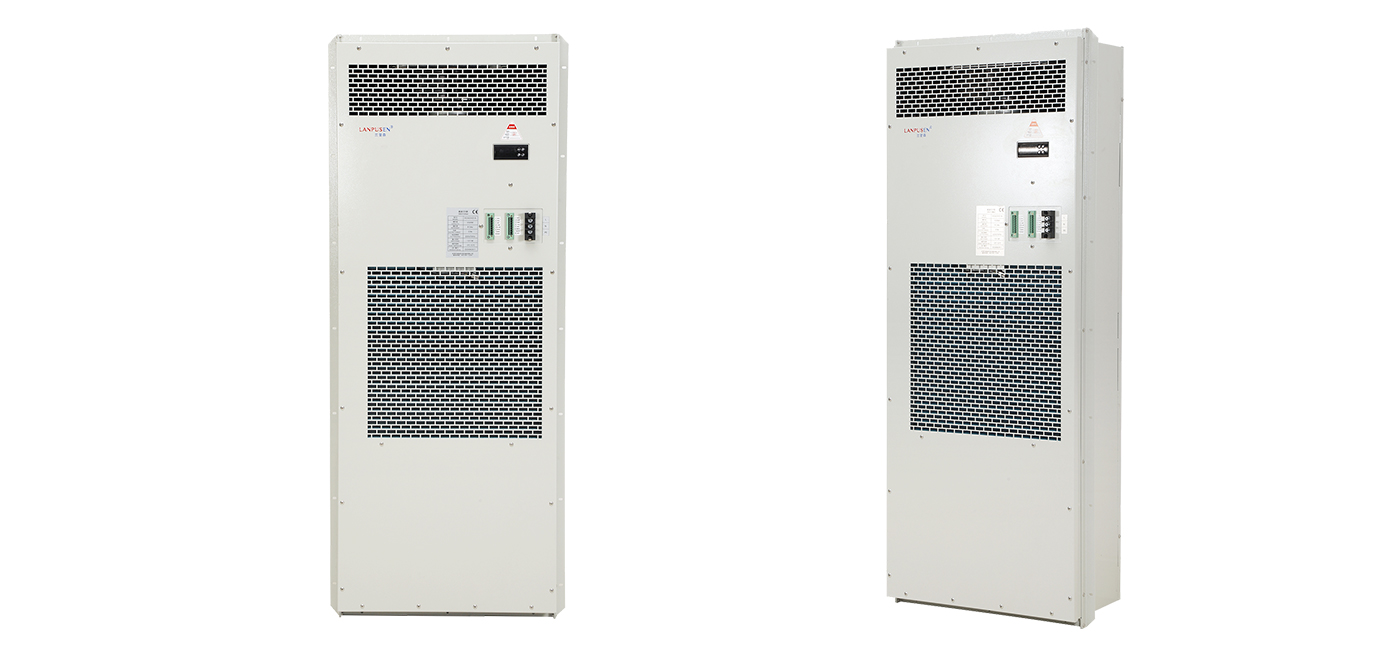

Energy storage air-cooled air conditioning is a temperature control solution designed for power control cabinets and prefabricated warehouses, with large air volume and long air supply distance, providing effective temperature and humidity control solutions for power control systems.
Application areas:
Communication, industry, power, broadcasting, finance, education and other industries.
Product features:
1. Adopting high-efficiency energy-saving fans and compressors to extend the service life of air conditioners and reduce power consumption;
2. Integrated design, plug and play, easy to install, no need for professional installation personnel;
3. Closed refrigeration cycle to protect equipment from adverse environmental effects;
4. Multi functional alarm output, real-time system monitoring, convenient and fast human-machine interface, making operation simpler;
5. Standard RS485&Dry contact, automatic startup upon incoming call, multiple protection functions;
6. Communication protocols can be opened to control the operation status of the air conditioner based on the temperature of the battery cells. When the temperature of the battery cells is low, the air conditioner enters standby mode to achieve maximum energy saving;
Technical parameters:
*Input voltage: AC220V/50Hz
*Communication interface: R485 (standard)
*Refrigerant: R410a
*Alarm output: dry contact (standard)
*Operating temperature range:- 5℃~55℃
*Standard heating and cooling
Installation method:
Installation location:Embedded door installation.
① Select a suitable side on all sides of the electrical cabinet;
② According to the "opening size diagram", open the corresponding air inlet and outlet, wiring port, and installation hole on the side;
③ The air conditioner should be perpendicular to the ground and not tilted to avoid affecting the normal operation of the compressor and the discharge of condensed water;
④ Once the air conditioner is fixed and connected to the power supply, it can be put into use;
