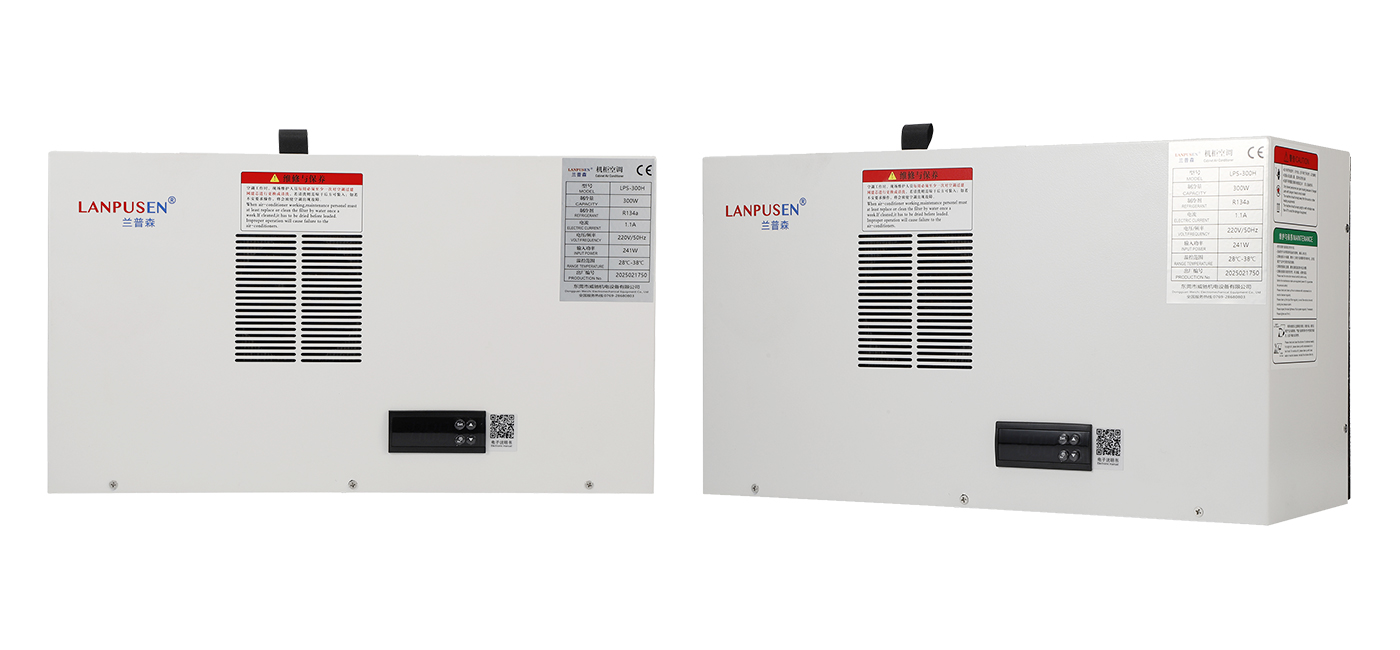

Product Introduction:
The working principle of cabinet air conditioning is to reduce the temperature of the environment by compressing and condensing the refrigerant through a compressor, releasing heat, and then evaporating and absorbing heat. When the air conditioner is installed on the control cabinet, it can transfer the heat inside the cabinet to the outside of the cabinet in a sealed manner, thereby avoiding the entry of high-temperature dust and corrosive gases from the external environment into the control cabinet. The temperature and humidity inside the control cabinet are always maintained in an ideal state, ensuring the service life and working stability of the electronic components inside the cabinet.
Application areas:
Machinery, machine tools, textiles, transportation, automobiles, chemicals, metallurgy, lifting, measurement, automation, electroplating, packaging, environmental protection, etc.
Product features:
1. Suitable for cooling small cabinets and standard electrical boxes;
2. Digital temperature controller, real-time monitoring of air conditioner usage status;
3. Adopting world-renowned brand rotary compressors with high reliability and low energy consumption;
4. High static pressure centrifugal fan is selected for the fan, which has a large circulating air volume and a long service life;
5. The air inside the cabinet and the ambient air circulate independently to ensure a clean environment inside the cabinet;
6. It has temperature regulation and dehumidification functions to ensure ideal temperature and humidity inside the cabinet;
7. The product has a small volume, light weight, and is easy to install, use, and maintain;
Technical parameters:
*Input voltage: AC220V/50Hz
*Communication interface: R485 (optional)
*Refrigerant: R134a
*Alarm output: dry contact (optional)
*Operating temperature range:- 5℃~55℃
*Standard single cooling, optional cooling and heating
Installation method:
Installation location:Horizontal installation.
① Select a suitable side on all sides of the electrical cabinet;
② According to the "opening size diagram", open the corresponding air inlet and outlet, wiring port, and installation hole on the side;
③ The air conditioner should be perpendicular to the ground and not tilted to avoid affecting the normal operation of the compressor and the discharge of condensed water;
④ Once the air conditioner is fixed and connected to the power supply, it can be put into use;
